Project : New Lauch Viscotec Dispenser
Test Purpose : Parker Chomerics Material test with Viscotec dispenser
Test Objective :

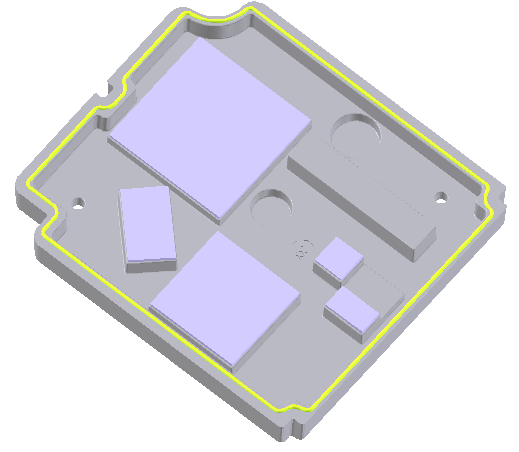

Objective : Testing Parker Chomerics Materials with Eco Pen 600 dispenser for the bead dispensing on gasket.

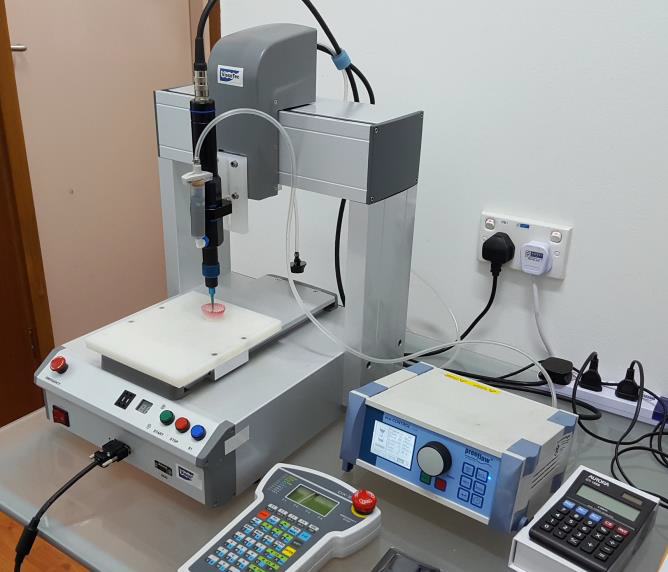

Test Set Up
Controller : Preeflow EC 200K
Note : TDS of the materials not available
Test Purpose : Parker Chomerics Material test with Viscotec dispenser
Test Objective :
Objective : Testing Parker Chomerics Materials with Eco Pen 600 dispenser for the bead dispensing on gasket.
Test Set Up
Controller : Preeflow EC 200K
Settings : Start/Stop program
Disp Flowrate : 0.24ml/min
Rev Flow : 0.00ml
Rev flowrate : 0.00ml/min
Dispenser : Preeflow Eco Pen 600
Nozzle : TH18G Green 0.84 nozzle.
Inlet pressure : 4 bar
apply
apply
Robot speed : 150mm/min
Material : Parker Chomerics (two types of Material sample in syringe)
supply
supply
Note : TDS of the materials not available
Test Procedure

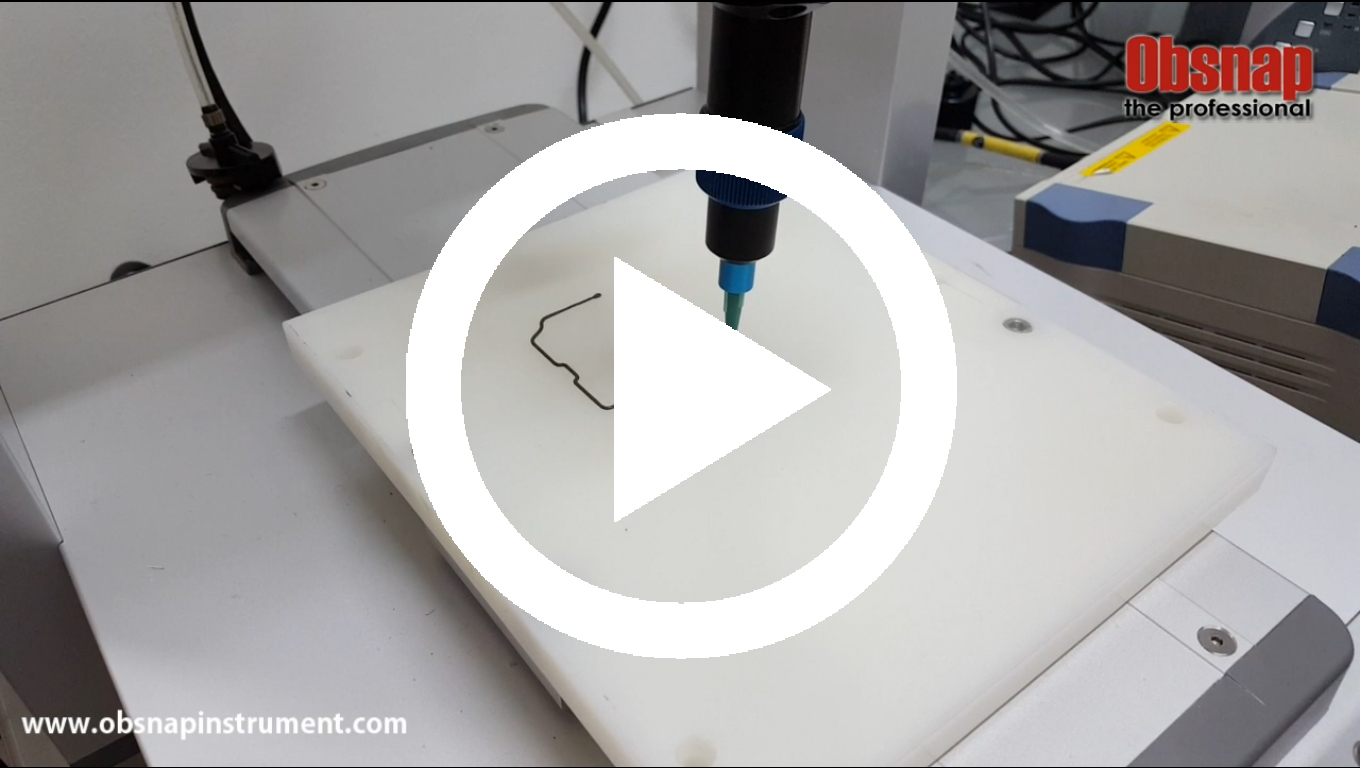

A simple program is generate to run with the following pattern.

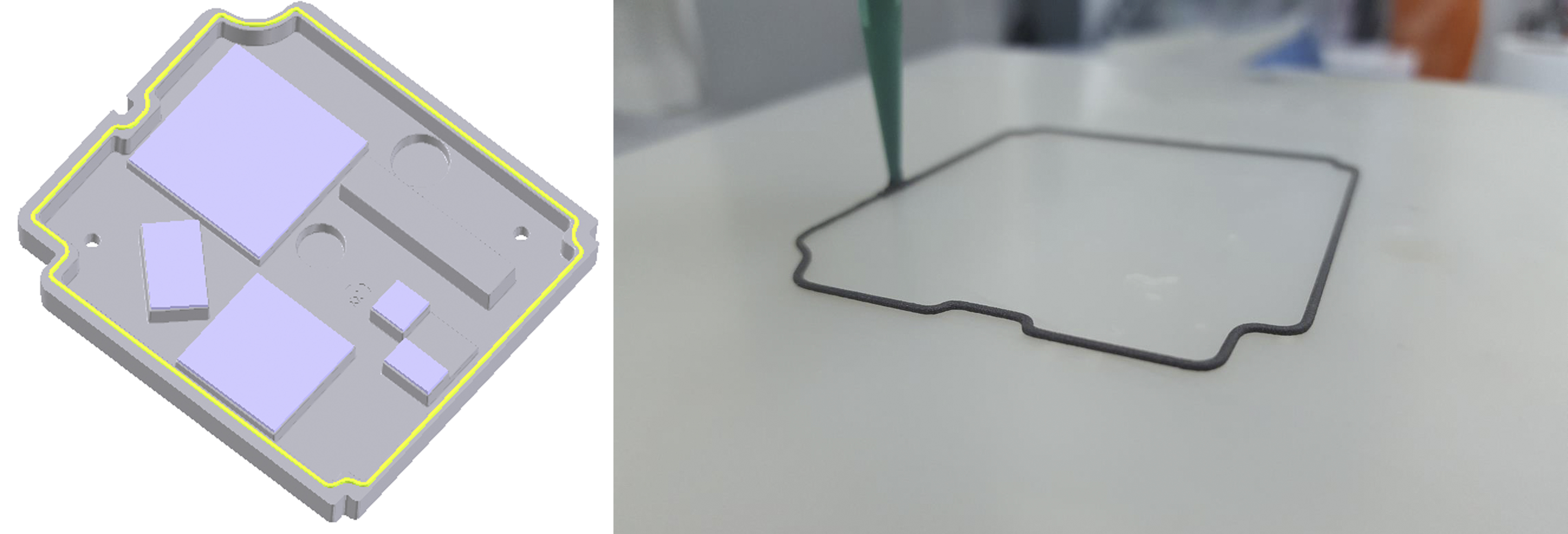

The materials are high viscosity with fillers. Working fine with viscotec dispenser Eco Duo 600. Dispensing flow rate, dispenser height and robot speed need to be fine tune to get required profile pattern.
The materials are high viscosity with fillers. Working fine with viscotec dispenser Eco Duo 600. Dispensing flow rate, dispenser height and robot speed need to be fine tune to get required profile pattern.
